Steel Cabinet Corner Automatic Spot Welding Machine With Loading Robot

Name: Steel Cabinet Corner Automatic Spot Welding Machine With Loading Robot
Brand: HWASHI
Price: 1 USD

Brand Name : HWASHI

Model Number : WL-MF-100Kx4

Certification : CE/CCC/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 45 working days after received your payment

Packaging Details : sea worthy wooden package

Product Name : Automatic Spot Welding Machine With Loading Robot , Steel Cabinet Welding Machine

Application : Welding steel cabinet corner

Size : 2000x1800x2200mm

Weight : 4500kg

Condition : New

Warranty : 12 months

Standard : CE/CCC/ISO

Service Life : 8-10 years

Contact Now

Steel Cabinet Corner Automatic Spot Welding Machine With Loading Robot

DESCRIPTION

This special automatic welding machine for welding Steel Cabinet corner with automatic loading and unloading robot

Part 1 : Automatic Spot Welding Machine

Main Body:Adopt the reinforced special design steel structure body with gantry type structure. According to the sample, it is designed gantry type stucture with 6 groups of welding heads. Maximum welding width is 1000mm while the feeder length is 4000mm. It adopts reasonable stress center of gravity to ensure the stable intensity of the main body when conducting fast speed welding. At the meantime, it could provide stress supporting point and working platform for other actions.

Power Source System: Adopt 4sets of 100KVA medium frequency inverter welding source. Maximum short circuit current is 21000A. Duty cycle rate reaches 25%. The three-phase power supply is under rectifying through a special inverter and converted to1000Hz AC voltage and then be transmitted to a medium frequency transformer to be rectified so as to provide DC welding current. Compare with general AC pulse power supply, this kind of power source could be fast and precisely adjusted. Small impact to the power grid and lower requirement for the power grid compare with the single-phase welder of the same capacity.

Welding Control System: Adopt the self-developed intelligent microcomputer quick response touch controller, all-digital control, simple and clear operational interface. Automatic testing and compensation which could guarantee the situation that the machine will be at work only when the current value is in the preset data so as to ensure the stability of welding effect and effective prevention of undesirable phenomena like loose welding and cold joint. The features of quick response and high precision of control may help you obtain high quality of welding spots.

TECHNICAL PARAMETERS

No.	Model	WL-SQ-MF90Kx4
1	Input Power	Three-phase
2	Rated Capacity	100KVAx4
3	Rated Input Current	300A
4	Rated Duty Cycle Rate	25%
5	Secondary Voltage Adjusting Grade	2
6	Max Secondary Floating Voltage	12.5V
7	Secondary Max Short Circuit Current	26KA
8	Continuous Working Current	20KA
9	Welding Transformer Insulation Grade	F
10	Welding Machine Pressuring Curves	2 types
11	Welding Programs Number	101 types
12	Welding Head	6 sets

Part 2: Automatic Loading and Unloading Robot

Items		Parameters
Model		HS-20RH
Degrees of Freedom		6
Driving Method		AC servo driving
Max. Payload		20kg
Repeated Positioning Accuracy		±0.05mm
Motion Range	J1Axis	±170°
	J2Axis	＋120°～ -85°
	J3Axis	＋85°～ -165°
	J4Axis	±180°
	J5Axis	±135°
	J6Axis	±360°
Max. Speed	J1Axis	2.27rad/s, 130°/s
	J2Axis	2.27rad/s, 130°/s
	J3Axis	2.27rad/s, 130°/s
	J4Axis	3.93rad/s, 225°/s
	J5Axis	2.53rad/s, 145°/s
	J6Axis	6.98rad/s, 400°/s
Allowed Torque	J4Axis	12N.m
	J5Axis	10N.m
	J6Axis	8N.m
Environment	Temperature	0℃～55℃
	Humidity	20%～80%(No frost)
	Other	Avoid inflammable, explosive, corrosive gas and liquid; No water, oil, dust; Keep away from noise(plasma)
Installation Method		Ground installing
Robot Main body		180kg
Power		Three-phase 380V,50HZ/60HZ,3.6KVA
Electric Cabinet Weight		200kg

Steel Cabinet Corner Automatic Spot Welding Machine With Loading Robot

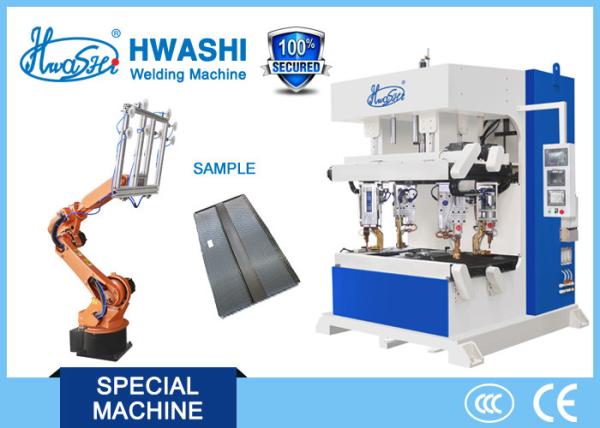

Loading Robot and Unloading Robot Working Picture

Steel Cabinet Corner Automatic Spot Welding Machine With Loading Robot
